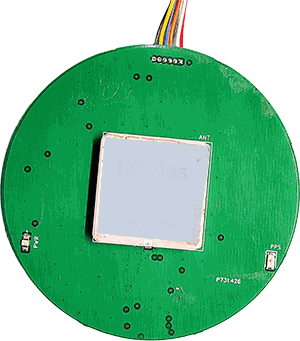

The Pathik GPS Board is a compact, high-precision GNSS navigation module designed for UAVs, robotics, and embedded systems requiring accurate positioning and dependable orientation sensing. Built around the u-blox MAX-M10S GNSS receiver and the Bosch BMM350 magnetometer, it delivers reliable multi-constellation navigation, precise heading information, and stable performance in dynamic operating environments. Featuring an optimized power architecture, integrated SAW RF filtering for enhanced signal selectivity, and a Taoglas SGGP.25.4.A.02 ceramic patch antenna, the module ensures low-latency positioning with improved signal integrity and reception. Supporting GPS L1, Galileo E1, and GLONASS L1 satellite constellations, the Pathik GPS Board provides accurate navigation with a velocity accuracy of 0.05 m/s. The module communicates through UART for GNSS data and I²C for magnetometer data, while an integrated backup capacitor enables fast hot-start capability for reduced acquisition times. Designed with a JST-GH 6-pin connector, onboard Power (VCC) and GNSS Timepulse LED indicators, and an operating temperature range of -10°C to +55°C, the Pathik GPS Board offers a robust and efficient navigation solution for UAVs, autonomous systems, robotics, and advanced positioning applications. |
